REAR VIEW CAMERA
HELP LINE
No.

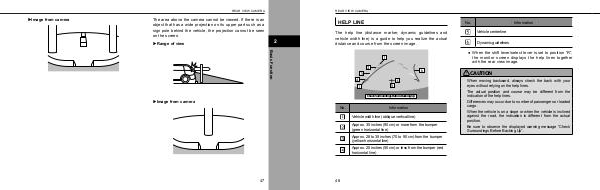

The help line (distance marker, dynamic guidelines and
vehicle width line) is a guide to help you realize the actual
distance and course from the screen image.
Information
Vehicle centerline
Dynamic guidelines
● ● When the shift lever/select lever is set to position “R”,
the monitor screen displays the help lines together
with the rear view image.
CAUTION
l l When moving backward, always check the back with your
eyes without relying on the help lines.
Check Surroundings Before Backing Up
No.
Information
Vehicle width line (oblique vertical line)
Approx. 35 inches (90 cm) or more from the bumper
(green horizontal line)
Approx. 28 to 35 inches (70 to 90 cm) from the bumper
(yellow horizontal line)
Approx. 20 inches (50 cm) or less from the bumper (red
horizontal line)
48
l l The actual position and course may be different from the
indication of the help lines.
l l Differences may occur due to number of passengers or loaded
cargo.
l l When the vehicle is on a slope or when the vehicle is inclined
against the road, the indication is different from the actual
position.
l l Be sure to observe the displayed warning message “Check
Surroundings Before Backing Up”.
