BASIC FUNCTION
BASIC FUNCTION

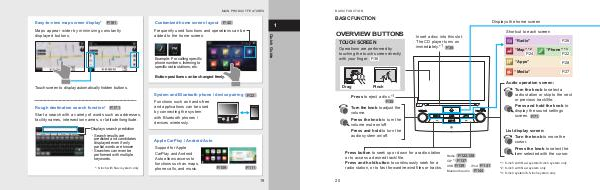

OVERVIEW BUTTONS
TOUCH SCREEN
Operations are performed by touching the touch screen directly with your finger. P. 36
Insert a disc into this slot. The CD player turns on immediately.* 1 P. 35
Displays the home screen |
Shortcut to each screen |
“ Radio” |
P. 26 |
“ Map” * 2 |
“ Phone” * 3 |
P. 24 |
P. 22 |
“ Apps” |
P. 28 |
“ Media” P. 27
20
Drag
Pinch
Press to eject a disc.* 1 P. 35
Turn the knob to adjust the volume.
Press the knob to turn the volume mute on / off.
Press and hold to turn the audio system on / off.
Press button to seek up or down for a radio station or to access a desired track / file. Press and hold button to continuously seek for a radio station, or to fast forward / rewind files or tracks.
Radio CD * 1 |
P. 122,128
P. 137
|
|
USB
P. 139
|
iPod
P. 141
|
Bluetooth audio |
P. 144 |
Audio operation screen:
Turn the knob to select a radio station or skip to the next or previous track / file.
Press and hold the knob to display the sound settings screen. P. 71
List display screen:
Turn the knob to move the cursor.
Press the knob to select the item selected with the cursor.
* 1: 8-inch with Navi system / 8-inch system only * 2: 8-inch with Navi system only * 3: 8-inch system / 6.5-inch system only
