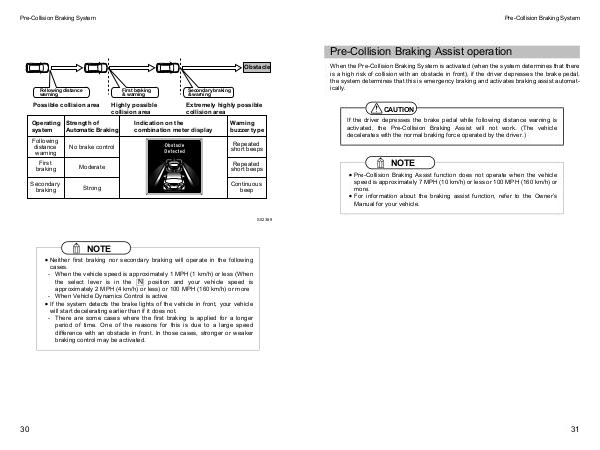

Pre-Collision Braking System
Obstacle
Following distance
warning
First braking
& warning
Possible collision area
Highly possible
collision area
Operating Strength of
Automatic Braking
system
Secondary braking
& warning
Extremely highly possible
collision area
Indication on the
combination meter display
Warning
buzzer type
Following
distance
warning No brake control Repeated
short beeps
First
braking Moderate Repeated
short beeps
Secondary
braking Strong Continuous
beep
S02389
NOTE
x Neither first braking nor secondary braking will operate in the following
cases.
- When the vehicle speed is approximately 1 MPH (1 km/h) or less (When
the select lever is in the N position and your vehicle speed is
approximately 2 MPH (4 km/h) or less) or 100 MPH (160 km/h) or more
- When Vehicle Dynamics Control is active
x If the system detects the brake lights of the vehicle in front, your vehicle
will start decelerating earlier than if it does not.
- There are some cases where the first braking is applied for a longer
period of time. One of the reasons for this is due to a large speed
difference with an obstacle in front. In those cases, stronger or weaker
braking control may be activated.
30
