About EyeSight

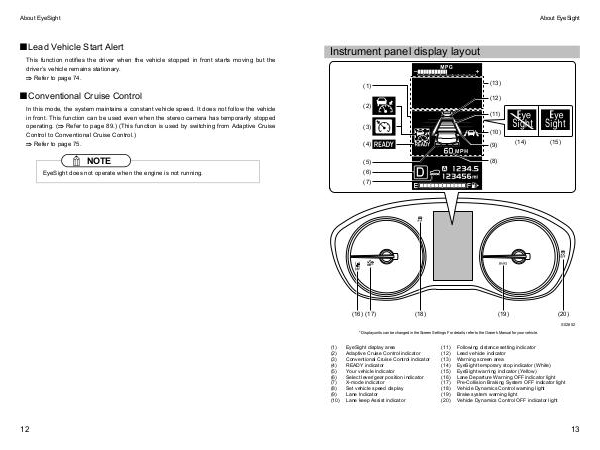

Instrument panel display layout
(13)
(1)
(12)
(2)
(11)
(3)
(10)
(4) (9)
(5) (8)
(14)
(15)
(6)
(7)
(16) (17)
(18)
(19)
(20)
S02652
* Display units can be changed in the Screen Settings. For details, refer to the Owner’s Manual for your vehicle.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
EyeSight display area
Adaptive Cruise Control indicator
Conventional Cruise Control indicator
READY indicator
Your vehicle indicator
Select lever/gear position indicator
X-mode indicator
Set vehicle speed display
Lane Indicator
Lane keep Assist indicator
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
Following distance setting indicator
Lead vehicle indicator
Warning screen area
EyeSight temporary stop indicator (White)
EyeSight warning indicator (Yellow)
Lane Departure Warning OFF indicator light
Pre-Collision Braking System OFF indicator light
Vehicle Dynamics Control warning light
Brake system warning light
Vehicle Dynamics Control OFF indicator light
13
