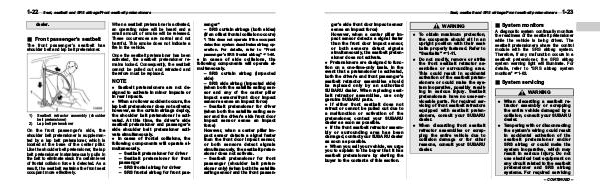

1-22
Seat, seatbelt and SRS airbags/Front seatbelt pretensioners
dealer.
& Front passenger’s seatbelt
The front passenger’s seatbelt has
shoulder belt and lap belt pretensioner.
When a seatbelt pretensioner is activated,
an operating noise will be heard and a
small amount of smoke will be released.
These occurrences are normal and not
harmful. This smoke does not indicate a
fire in the vehicle.
Once the seatbelt pretensioner has been
activated, the seatbelt pretensioner remains locked. Consequently, the seatbelt
cannot be pulled out and retracted and
therefore must be replaced.
NOTE
1)
2)
Seatbelt retractor assembly (shoulder
belt pretensioner)
Lap belt pretensioner
On the front passenger’s side, the
shoulder belt pretensioner is supplemented by a lap belt pretensioner, which is
located at the base of the center pillar.
Like the shoulder belt pretensioner, the lap
belt pretensioner instantaneously pulls in
the belt to eliminate slack if a certain level
of frontal collision force is detected. As a
result, the seatbelt restrains the front seat
occupant more effectively.
. Seatbelt pretensioners are not designed to activate in minor impacts or
in rear impacts.
. When a rollover accident occurs, the
lap belt pretensioner does not activate;
however, as the curtain airbags deploy,
the shoulder belt pretensioner is activated. At this time, the driver’s side
seatbelt pretensioner and passenger’s
side shoulder belt pretensioner activate simultaneously.
. In cases of frontal collisions, the
following components will operate simultaneously.
– Seatbelt pretensioner for driver
– Seatbelt pretensioner for front
passenger
– SRS frontal airbag for driver
– SRS frontal airbag for front pas-
senger*
– SRS curtain airbags (both sides)
(if an offset frontal collision occurs)
*: This does not operate if the occupant
detection system deactivates airbag operation. For details, refer to “Front
passenger’s SRS frontal airbag” F1-46.
. In cases of side collisions, the
following components will operate simultaneously.
– SRS curtain airbag (impacted
side)
– SRS side airbag (imp acted side)
(when both the satellite safing sensor and any of the center pillar
impact sensors/front door impact
sensors sense an impact force)
– Seatbelt pretensioner for driver
(when both the satellite safing sensor and the driver’s side front door
impact sensor sense an impact
force)
However, when a center pillar impact sensor detects a signal faster
than the front door impact sensor,
or both sensors detect signals
simultaneously, the seatbelt pretensioner does not activate.
– Seatbelt pretensioner for front
passenger (shoulder belt pretensioner only) (when both the satellite
safing sensor and the front passen-
