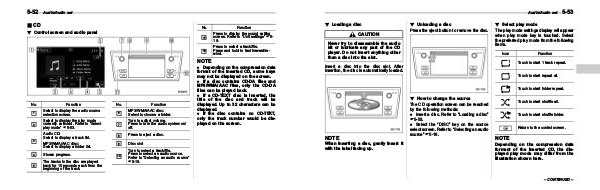

5-52
Audio / Audio set
& CD
! Control screen and audio panel
No.
& 1
& 2
& 3
Function Select to display the audio source selection screen.
Select to display the play mode currently selected. Refer to“ Select play mode” F5-53.
Audio CD: Select to display a track list.
MP3 / WMA / AAC disc: Select to display a folder list.
& 4 Shows progress.
& 5
The tracks in the disc are played back for 10 seconds each from the beginning of the track.
No.
& 6
& 7
Function MP3 / WMA / AAC disc: Select to choose a folder.
Turn to adjust volume. Press to turn the audio system on / off.
& 8 |
Press to eject a disc. |
& 9 |
Disc slot |
& 10
Turn to select a track / file. Press to select an audio source. Refer to“ Selecting an audio source” F5-18.
No.
& 11
& 12
Function Press to display the sound setting screen. Refer to“ Unit settings” F5- 19.
Press to select a track / file. Press and hold to fast forward / rewind.
NOTE
. Depending on the compression data format of the inserted CD, some keys may not be displayed on the screen.. If a disc contains CD-DA files and MP3 / WMA / AAC files, only the CD-DA files can be played back.. If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Up to 32 characters can be displayed.. If the disc contains no CD-TEXT, only the track number would be displayed on the screen.
