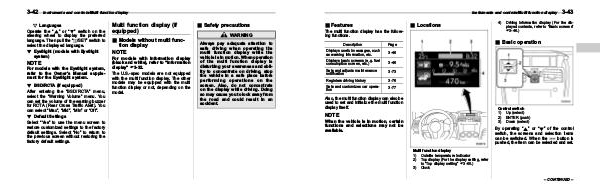

Instruments and controls/Multi function display
& Features
& Locations
The multi function display has the following functions.
Description
Page
Displays useful messages, such
as warning information, etc.
3-46
Displays basic screens (e.g. fuel
consumption screen, etc.)
3-46
Sets and adjusts maintenance
notification
3-73
Registers driving history
3-76
Sets and customizes car operation
3-77
4)
3-43
Driving information display (For the displayed contents, refer to “Basic screens”
F3-46.)
& Basic operation
Also, the multi function display can also be
used to set and initialize the multi function
display itself.
Control switch
1) Up (select)
2) ENTER (push)
3) Down (select)
NOTE
When the vehicle is in motion, certain
functions and selections may not be
available.
By operating “ ” or “ ” of the control
switch, the screens and selection items
button is
can be switched. When the
pushed, the item can be selected and set.
Multi function display
1) Outside temperature indicator
2) Top display (For the display setting, refer
to “Top display setting” F3-65.)
3) Clock
– CONTINUED –
