12-16
1)
2)

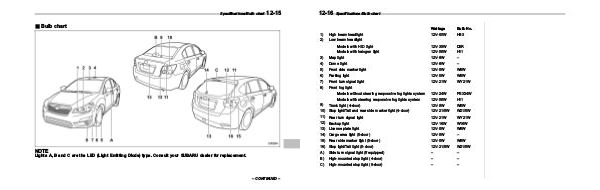

Specifications/Bulb chart
High beam headlight
Low beam headlight
Models with HID light
Models with halogen light
Wattage Bulb No.
12V-60W HB3
12V-35W
12V-55W D2R
H11
3) Map light 12V-8W –
4) Dome light 12V-8W –
5) Front side marker light 12V-5W W5W
6) Parking light 12V-5W W5W
7) Front turn signal light 12V-21W WY21W
8) Front fog light Models without steering responsive fog lights system 12V-24W PSX24W
Models with steering responsive fog lights system 12V-55W H11
Trunk light (4-door)
10) Stop light/Tail and rear side marker light (4-door) 12V-5W
12V-21/5W W5W
W21/5W
11) Rear turn signal light
12) Backup light 12V-21W WY21W
12V-16W W16W
9)
13) License plate light
14) Cargo area light (5-door) 12V-5W W5W
12V-5W –
15) Rear side marker light (5-door)
16) Stop light/Tail light (5-door) 12V-5W W5W
12V-21/5W W21/5W
A) – –
Side turn signal light (if equipped)
B) High-mounted stop light (4-door) – –
C) High-mounted stop light (5-door) – –
