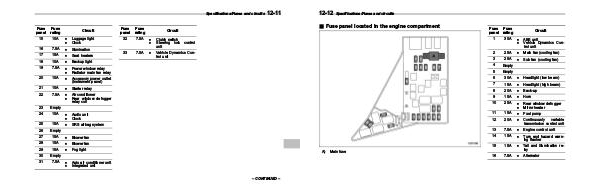

12-12
Specifications/Fuses and circuits
& Fuse panel located in the engine compartment
A)
Fuse
panel Fuse
rating 1 30A .
. ABS unit
Vehicle Dynamics Con-
trol unit
2 25A . Main fan (cooling fan)
3 25A . Sub fan (cooling fan)
4 Empty 5 Empty 6 30A . Headlight (low beam)
7 15A . Headlight (high beam)
8 20A . Back-up
9 15A . Horn
10 25A .
. Rear window defogger
Mirror heater
11 15A . Fuel pump
12 20A . Continuously
variable
transmission control unit
13 7.5A . Engine control unit
14 15A . Turn and hazard warn-
ing flasher
15 15A . Tail and illumination re-
lay
16 7.5A . Alternator
Main fuse
Circuit
