Subaru Crosstrek Manuals 2016 Crosstrek Owner's Manual | Page 550

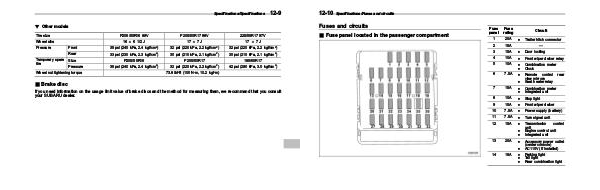

Specifications/Specifications
12-9
! Other models
Tire size
P205/55R16 89V P205/50R17 88V 16 6 6 1/2 J 17 6 7 J 17 6 7 J
Front 35 psi (240 kPa, 2.4 kgf/cm 2 ) 32 psi (220 kPa, 2.2 kgf/cm 2 ) 32 psi (220 kPa, 2.2 kgf/cm 2 )
Rear 33 psi (230 kPa, 2.3 kgf/cm 2 ) 30 psi (210 kPa, 2.1 kgf/cm 2 ) 30 psi (210 kPa, 2.1 kgf/cm 2 )
Wheel size
Pressure
Temporary spare
tire
Size
Pressure
Wheel nut tightening torque
225/55R17 97V
P205/55R16 P205/50R17 185/65R17
35 psi (240 kPa, 2.4 kgf/cm 2 ) 32 psi (220 kPa, 2.2 kgf/cm 2 ) 42 psi (290 kPa, 3.0 kgf/cm 2 )
73.8 lbf·ft (100 N·m, 10.2 kgf·m)
& Brake disc
If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult
your SUBARU dealer.
