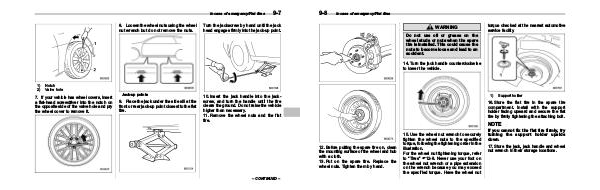

In case of emergency/Flat tires
8. Loosen the wheel nuts using the wheel
nut wrench but do not remove the nuts.
1)
2)
9-7
Turn the jackscrew by hand until the jack
head engages firmly into the jack-up point.
Notch
Valve hole
7. If your vehicle has wheel covers, insert
a flat-head screwdriver into the notch on
the opposite side of the valve hole and pry
the wheel cover to remove it.
Jack-up points
9. Place the jack under the side sill at the
front or rear jack-up point closest to the flat
tire.
10. Insert the jack handle into the jack-
screw, and turn the handle until the tire
clears the ground. Do not raise the vehicle
higher than necessary.
11. Remove the wheel nuts and the flat
tire.
– CONTINUED –
