22

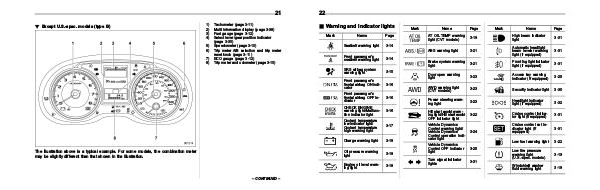

& Warning and indicator lights
Mark
Name Page
Seatbelt warning light 3-14
Front passenger’s
seatbelt warning light
SRS airbag system
warning light
3-14
3-15
/ Front passenger’s
frontal airbag ON indi-
cator 3-16
/ Front passenger’s
frontal airbag OFF in-
dicator 3-16
CHECK ENGINE
warning light/Malfunc-
tion indicator light 3-16
Coolant temperature
low indicator light/
Coolant temperature
high warning light 3-17
Charge warning light
Oil pressure warning
light
Engine oil level warn-
ing light
Mark
Name Page AT OIL TEMP warning
light (CVT models) 3-19 High beam indicator
light 3-31
ABS warning light 3-21 Automatic headlight
beam leveler warning
light (if equipped) 3-31
Brake system warning
light 3-21 Front fog light indicator
light (if equipped) 3-31
Door open warning
light 3-23 Access key warning
indicator (if equipped) 3-25
AWD warning light
(CVT models) 3-23 Security indicator light 3-30
Power steering warn-
ing light 3-23 Headlight indicator
light (if equipped) 3-32
Hill start assist warn-
ing light/Hill start assist
OFF indicator light 3-22 Cruise control indica-
tor light (if equipped) 3-31
Cruise control set in-
dicator light (if
equipped) 3-31
Low fuel warning light 3-22
Low tire pressure
warning light
(U.S.-spec. models) 3-19
Windshield washer
fluid warning light 3-19
3-24
3-18 Vehicle Dynamics
Control warning light/
Vehicle Dynamics
Control operation indi-
cator light 3-25
3-18 Vehicle Dynamics
Control OFF indicator
light Turn signal indicator
lights 3-31
3-18
Mark
Name
Page
