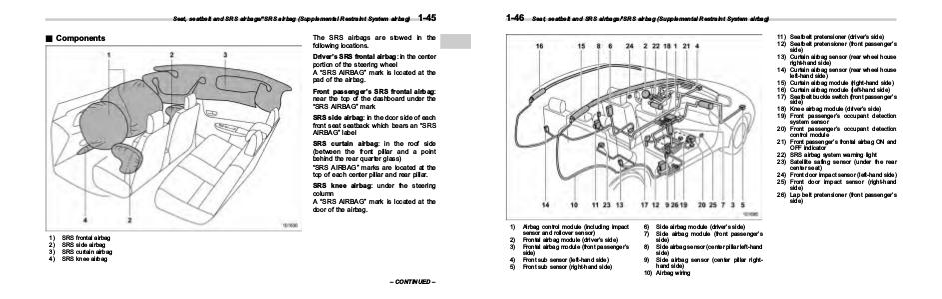

Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag)
& Components
1-45
The SRS airbags are stowed in the
following locations.
Driver’s SRS frontal airbag: in the center
portion of the steering wheel
A “SRS AIRBAG” mark is located at the
pad of the airbag.
Front passenger’s SRS frontal airbag:
near the top of the dashboard under the
“SRS AIRBAG” mark
SRS side airbag: in the door side of each
front seat seatback which bears an “SRS
AIRBAG” label
SRS curtain airbag: in the roof side
(between the front pillar and a point
behind the rear quarter glass)
“SRS AIRBAG” marks are located at the
top of each center pillar and rear pillar.
SRS knee airbag: under the steering
column
A “SRS AIRBAG” mark is located at the
door of the airbag.
1)
2)
3)
4)
SRS
SRS
SRS
SRS
frontal airbag
side airbag
curtain airbag
knee airbag
– CONTINUED –
