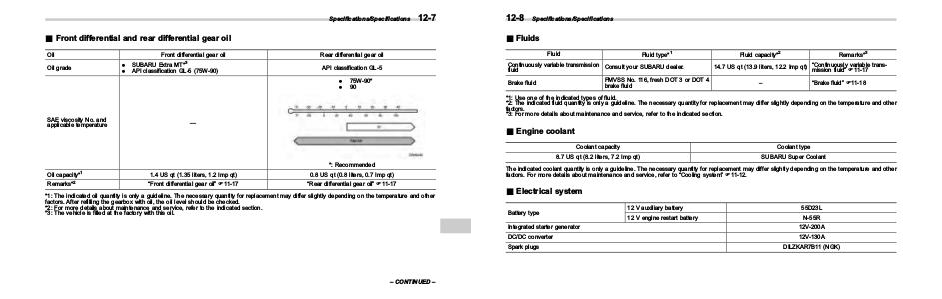

Specifications/Specifications
12-7
& Front differential and rear differential gear oil
Oil
Oil grade
Front differential gear oil
.
.
Rear differential gear oil
3
SUBARU Extra MT*
API classification GL-5 (75W-90)
API classification GL-5
.
.
SAE viscosity No. and
applicable temperature
75W-90*
90
—
*: Recommended
Oil capacity*1
1.4 US qt (1.35 liters, 1.2 Imp qt)
0.8 US qt (0.8 liters, 0.7 Imp qt)
Remarks*2
“Front differential gear oil” F11-17
“Rear differential gear oil” F11-17
*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. After refilling the gearbox with oil, the oil level should be checked.
*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory with this oil.
– CONTINUED –
