Subaru Crosstrek Manuals 2016 Crosstrek Hybrid Owner's Manual | Page 498

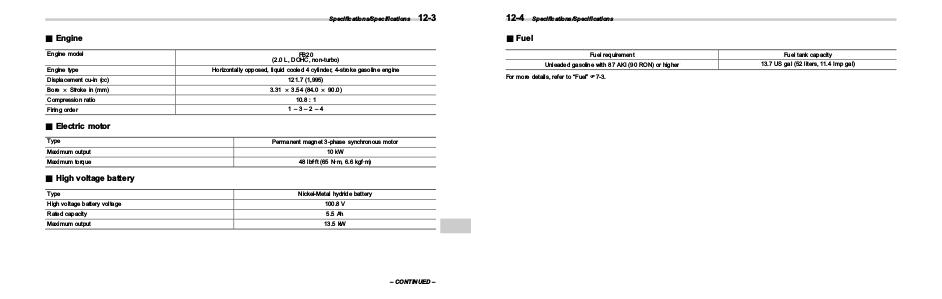

Specifications/Specifications

12-3

& Engine
Engine model
Engine type

FB20
(2.0 L, DOHC, non-turbo)
Horizontally opposed, liquid cooled 4 cylinder, 4-stroke gasoline engine

Displacement cu-in (cc)

121.7 (1,995)

Bore 6 Stroke in (mm)

3.31 6 3.54 (84.0 6 90.0)

Compression ratio
Firing order

10.8 : 1
1–3–2–4

& Electric motor
Type

Permanent magnet 3-phase synchronous motor

Maximum output

10 kW

Maximum torque

48 lbf·ft (65 N·m, 6.6 kgf·m)

& High voltage b
