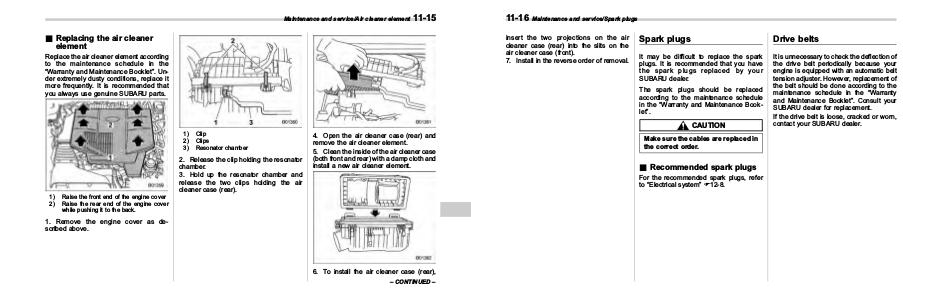

Maintenance and service/Air cleaner element
11-15
& Replacing the air cleaner
element
Replace the air cleaner element according
to the maintenance schedule in the
“Warranty and Maintenance Booklet”. Under extremely dusty conditions, replace it
more frequently. It is recommended that
you always use genuine SUBARU parts.
1)
2)
3)
Clip
Clips
Resonator chamber
2. Release the clip holding the resonator
chamber.
3. Hold up the resonator chamber and
release the two clips holding the air
cleaner case (rear).
1)
2)
4. Open the air cleaner case (rear) and
remove the air cleaner element.
5. Clean the inside of the air cleaner case
(both front and rear) with a damp cloth and
install a new air cleaner element.
Raise the front end of the engine cover
Raise the rear end of the engine cover
while pushing it to the back.
1. Remove the engine cover as described above.
6. To install the air cleaner case (rear),
– CONTINUED –
