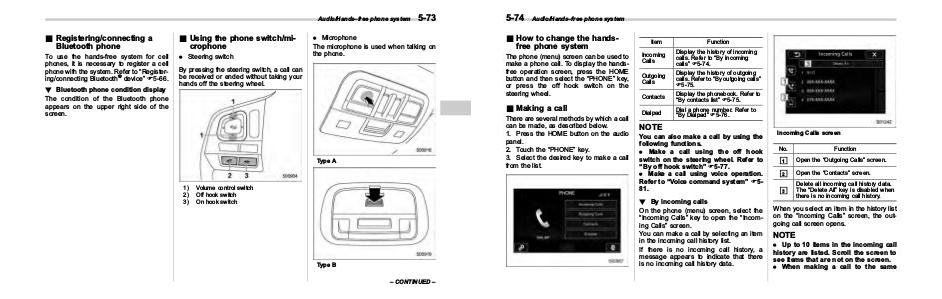

Audio/Hands–free phone system
& Registering/connecting a
Bluetooth phone
& Using the phone switch/microphone
To use the hands-free system for cell
phones, it is necessary to register a cell
phone with the system. Refer to “Registering/connecting Bluetooth® device” F5-66.
. Steering switch
! Bluetooth phone condition display
The condition of the Bluetooth phone
appears on the upper right side of the
screen.
5-73
. Microphone
The microphone is used when talking on
the phone.
By pressing the steering switch, a call can
be received or ended without taking your
hands off the steering wheel.
Type A
1)
2)
3)
Volume control switch
Off hook switch
On hook switch
Type B
– CONTINUED –
