Climate control/Air filtration system
NOTE
4-11
doing this, be careful not to damage
the hinge.
The filter can influence the air conditioning, heating and defroster performance if not properly maintained.

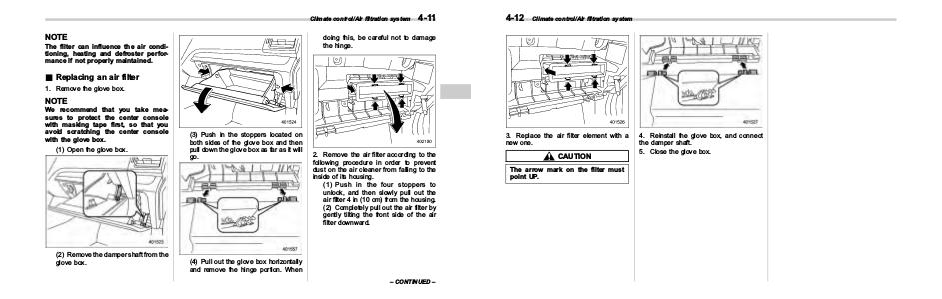

& Replacing an air filter
1. Remove the glove box.
NOTE
We recommend that you take measures to protect the center console
with masking tape first, so that you
avoid scratching the center console
with the glove box.
(1) Open the glove box.
(2) Remove the damper shaft from the
glove box.
(3) Push in the stoppers located on
both sides of the glove box and then
pull down the glove box as far as it will
go.
2. Remove the air filter according to the
following procedure in order to prevent
dust on the air cleaner from falling to the
inside of its housing.
(1) Push in the four stoppers to
unlock, and then slowly pull out the
air filter 4 in (10 cm) from the housing.
(2) Completely pull out the air filter by
gently tilting the front side of the air
filter downward.
(4) Pull out the glove box horizontally
and remove the hinge portion. When
– CONTINUED –
