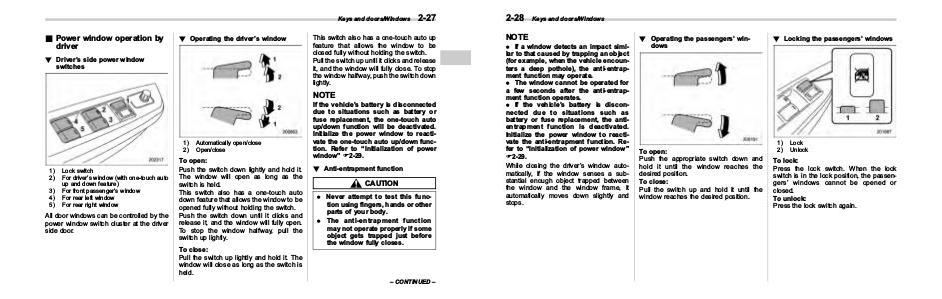

Keys and doors/Windows
& Power window operation by
driver
! Operating the driver’s window
! Driver’s side power window
switches
2-27
This switch also has a one-touch auto up
feature that allows the window to be
closed fully without holding the switch.
Pull the switch up until it clicks and release
it, and the window will fully close. To stop
the window halfway, push the switch down
lightly.
NOTE
1)
2)
1)
2)
3)
4)
5)
Lock switch
For driver’s window (with one-touch auto
up and down feature)
For front passenger’s window
For rear left window
For rear right window
All door windows can be controlled by the
power window switch cluster at the driver
side door.
Automatically open/close
Open/close
To open:
Push the switch down lightly and hold it.
The window will open as long as the
switch is held.
This switch also has a one-touch auto
down feature that allows the window to be
opened fully without holding the switch.
Push the switch down until it clicks and
release it, and the window will fully open.
To stop the window halfway, pull the
switch up lightly.
To close:
Pull the switch up lightly and hold it. The
window will close as long as the switch is
held.
If the vehicle’s battery is disconnected
due to situations such as battery or
fuse replacement, the one-touch auto
up/down function will be
