3-50
Instruments and controls/Multi function display

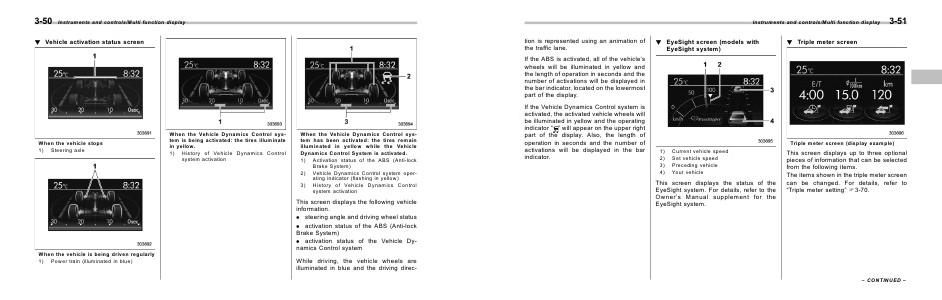

! Vehicle activation status screen
When the vehicle stops
1) Steering axle
When the Vehicle Dynamics Control system is being activated: the tires illuminate
in yellow.
1) History of Vehicle Dynamics Control
system activation
When the Vehicle Dynamics Control system has been activated: the tires remain
illuminated in yellow while the Vehicle
Dynamics Control System is activated.
1) Activation status of the ABS (Anti-lock
Brake System)
2) Vehicle Dynamics Control system operating indicator (flashing in yellow)
3) History of Vehicle Dynamics Control
system activation
This screen displays the following vehicle
information.
. steering angle and driving wheel status
. activation status of the ABS (Anti-lock
Brake System)
. activation status of the Vehicle Dynamics Control system
When the vehicle is being driven regularly
1) Power train (illuminated in blue)
While driving, the vehicle wheels are
illuminated in blue and the driving direc-
