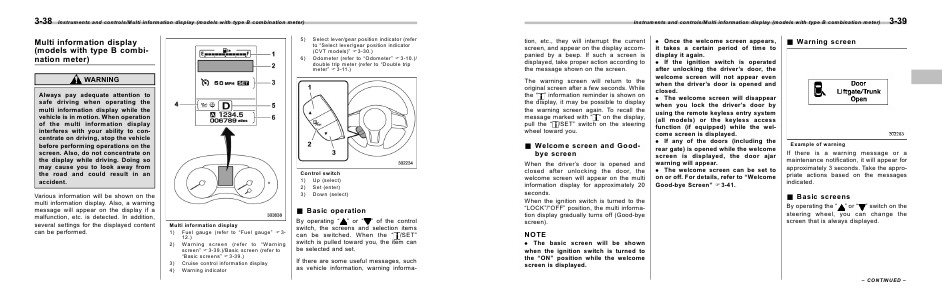

3-38
Instruments and controls/Multi information display (models with type B combination meter)
5)
Multi information display
(models with type B combination meter)
6)
Select lever/gear position indicator (refer
to “Select lever/gear position indicator
(CVT models)” F3-30.)
Odometer (refer to “Odometer” F3-10.)/
double trip meter (refer to “Double trip
meter” F3-11.)
WARNING
Always pay adequate attention to
safe driving when operating the
multi information display while the
vehicle is in motion. When operation
of the multi information display
interferes with your ability to concentrate on driving, stop the vehicle
before performing operations on the
screen. Also, do not concentrate on
the display while driving. Doing so
may cause you to look away from
the road and could result in an
accident.
Various information will be shown on the
multi information display. Also, a warning
message will appear on the display if a
malfunction, etc. is detected. In addition,
several settings for the displayed content
can be performed.
Control switch
1) Up (select)
2) Set (enter)
3) Down (select)
& Basic operation
Multi information display
1) Fuel gauge (refer to “Fuel gauge” F312.)
2) Warning screen (refer to “Warning
screen” F3-39.)/Basic screen (refer to
“Basic screens” F3-39.)
3) Cruise control information display
4) Warning indicator
By operating “ ” or “ ” of the control
switch, the screens and selection items
can be switched. When the “ /SET”
switch is pulled toward you, the item can
be selected and set.
If there are some useful messages, such
as vehicle information, warning informa-
