Maintenance and service/Replacing bulbs
NOTE
. If headlight aiming is required, consult your SUBARU dealer for proper
adjustment of the headlight aim.
. It may be difficult to replace the
bulbs. Have the bulbs replaced by your
SUBARU dealer if necessary.

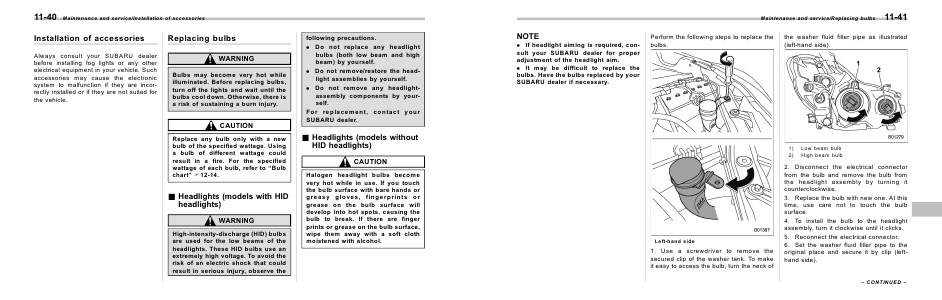

Perform the following steps to replace the
bulbs.
the washer fluid filler pipe as illustrated
(left-hand side).
1)
2)
Left-hand side
1. Use a screwdriver to remove the
secured clip of the washer tank. To make
it easy to access the bulb, turn the neck of
11-41
Low beam bulb
High beam bulb
2. Disconnect the electrical connector
from the bulb and remove the bulb from
the headlight assembly by turning it
counterclockwise.
3. Replace the bulb with new one. At this
time, use care not to touch the bulb
surface.
4. To install the bulb to the headlight
assembly, turn it clockwise until it clicks.
5. Reconnect the electrical connector.
6. Set the washer fluid filler pipe to the
original place and secure it by clip (lefthand side).
– CONTINUED –
