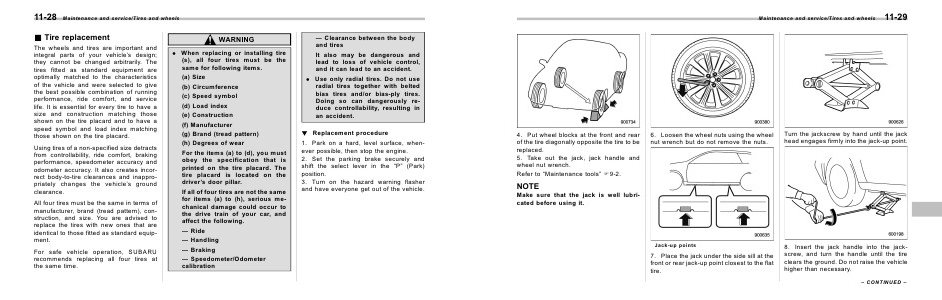

Maintenance and service/Tires and wheels
4. Put wheel blocks at the front and rear
of the tire diagonally opposite the tire to be
replaced.
5. Take out the jack, jack handle and
wheel nut wrench.
Refer to “Maintenance tools” F9-2.
6. Loosen the wheel nuts using the wheel
nut wrench but do not remove the nuts.
11-29
Turn the jackscrew by hand until the jack
head engages firmly into the jack-up point.
NOTE
Make sure that the jack is well lubricated before using it.
Jack-up points
7. Place the jack under the side sill at the
front or rear jack-up point closest to the flat
tire.
8. Insert the jack handle into the jackscrew, and turn the handle until the tire
clears the ground. Do not raise the vehicle
higher than necessary.
– CONTINUED –
