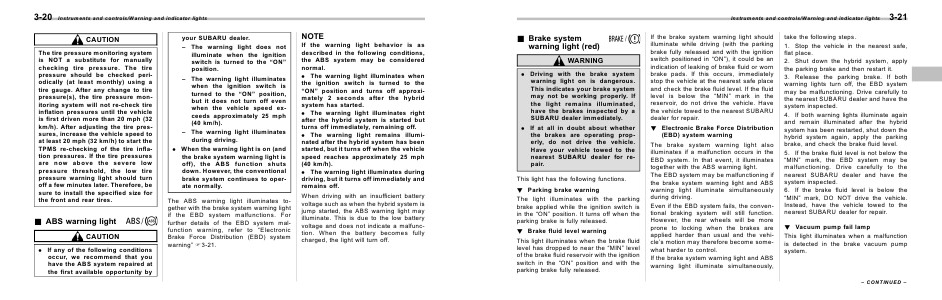

Subaru Crosstrek Manuals 2015 XV Crosstrek Hybrid Owner's Manual | Seite 164

3-20

Instruments and controls/Warning and indicator lights

CAUTION
The tire pressure monitoring system
is NOT a substitute for manually
checking tire pressure. The tire
pressure should be checked periodically (at least monthly) using a
tire gauge. After any change to tire
pressure(s), the tire pressure monitoring system will not re-check tire
inflation pressures until the vehicle
is first driven more than 20 mph (32
km/h). After adjusting the tire pressures, increase the vehicle speed to
at least 20 mph (32 km/h) to start the
TPMS re-checking of the tire inflation pressures. If the tire pressures
are now above the severe low
pressure threshold, the low tire
pressure warning light should turn
off a few minutes later. Therefore, be
sure to install the specified size for
the front and rear tires.

& ABS warning light
CAUTION
. If any of the following conditions
occur, we recommend that you
have the ABS system repaired at
the first available opportunity by

your SUBARU dealer.
– The warning light does not
illuminate when the ignition
switch is turned to the “ON”
position.
– The warning light illuminates
when the ignition switch is
turned to the “ON” position,
but it does not turn off even
when the vehicle speed exceeds approximately 25 mph
(40 km/h).
– The warning light illuminates
during driving.
. When the warning light is on (and
the brake system warning light is
off), the ABS function shuts
down. However, the conventional
brake system continues to operate normally.
The ABS warning light illuminates together with the brake system warning light
if the EBD system malfunctions. For
further details of the EBD system malfunction warning, refer to “Electronic
Brake Force Distribution (EBD) 7
