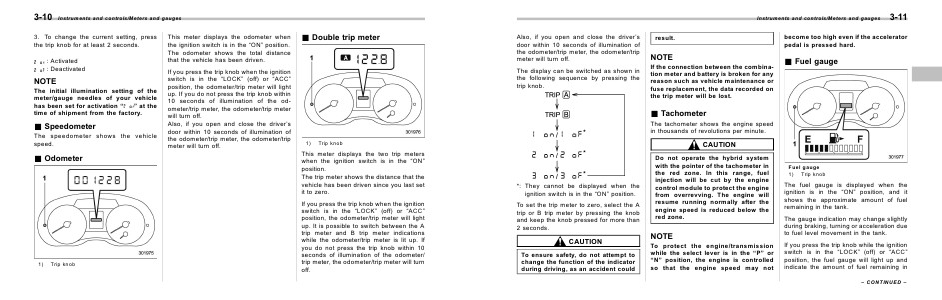

Subaru Crosstrek Manuals 2015 XV Crosstrek Hybrid Owner's Manual | Seite 155

Instruments and controls/Meters and gauges

Also, if you open and close the driver’s
door within 10 seconds of illumination of
the odometer/trip meter, the odometer/trip
meter will turn off.
The display can be switched as shown in
the following sequence by pressing the
trip knob.

3-11

become too high even if the accelerator
pedal is pressed hard.

result.

NOTE
If the connection between the combination meter and battery is broken for any
reason such as vehicle maintenance or
fuse replacement, the data recorded on
the trip meter will be lost.

& Fuel gauge

& Tachometer
The tachometer shows the engine speed
in thousands of revolutions per minute.

CAUTION

*: They cannot be displayed when the
ignition switch is in the “ON” position.
To set the trip meter to zero, select the A
trip or B trip meter by pressing the knob
and keep the knob pressed for more than
2 seconds.

CAUTION
To ensure safety, do not attempt to
change the function of the indicator
during driving, as an accident could

Do not operate the hybrid system
with the pointer of the tachometer in
the red zone. In this range, fuel
injection will be cut by the engine
control module to protect the engine
from overrevving. The engine will
resume running normally after the
engine speed is reduced below the
red zone.

NOTE
To protect the engine/transmission
while the select lever is in the “P” or
“N” position, the engine is controlled
so that the engine speed may not

Fuel gauge
1) Trip knob

The fuel gauge is displayed when the
ignition is in the “ON” position, and it
shows the approximate amount of fuel
remaining in the tank.
The gauge indication may change slightly
during braking, turning or acceleration due
to fuel level movement in the tank.
If you press the trip knob while the ignition
switch is in the “LOCK” (off) or “ACC”
position, the fuel gauge v
