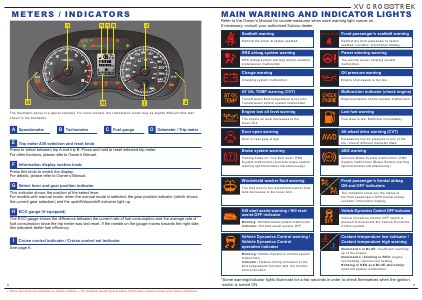

METERS / INDICATORS
The illustration above is a typical example. For some models, the combination meter may be slightly different than that
shown in the illustration.
A
Speedometer
B
E
Trip meter A/B selection and reset knob
Tachometer
C
Fuel gauge
D
Odometer / Trip meter
Press to select between trip A and trip B. Press and hold to reset selected trip meter.
For other functions, please refer to Owner’s Manual.
F
Information display section knob
Press this knob to switch the display.
For details, please refer to Owner’s Manual.
G
Select lever and gear position indicator
This indicator shows the position of the select lever.
For models with manual mode, when the manual mode is selected, the gear position indicator (which shows
the current gear selection) and the upshift/downshift indicator light up.
H
ECO gauge (if equipped)
The ECO gauge shows the difference between the current rate of fuel consumption and the average rate of
fuel consumption since the trip meter was last reset. If the needle on the gauge moves towards the right side,
this indicates better fuel efficiency.
I
Cruise control indicator / Cruise control set indicator
See page 6.
8
Some functions are available on certain models. For detailed operating and safety information, please consult your Owner’s Manual.
