D

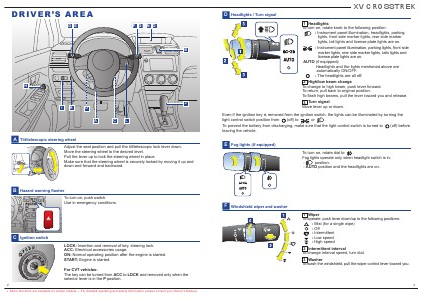

XV CROSSTREK
Headlights / Turn signal
1 Headlights
To turn on, rotate knob to the following position:
: Instrument panel illumination, headlights, parking
lights, front side marker lights, rear side marker
lights, tail lights and license plate lights are on.
: Instrument panel illumination, parking lights, front side
marker lights, rear side marker lights, tails lights and
license plate lights are on.
AUTO (if equipped):
Headlights and the lights mentioned above are
automatically ON/OFF.
: The headlights are all off.
2 High/low beam change
To change to high beam, push lever forward.
To return, pull back to original position.
To flash high beams, pull the lever toward you and release.
3 Turn signal
Move lever up or down.
Even if the ignition key is removed from the ignition switch, the lights can be illuminated by turning the
light control switch position from
(off) to
or
.
To prevent the battery from discharging, make sure that the light control switch is turned to
(off) before
leaving the vehicle.
E
Fog lights (if equipped)
To turn on, rotate dial to
.
Fog lights operate only when headlight switch is in:
position.
- AUTO position and the headlights are on.
F
Windshield wiper and washer
1 Wiper
To operate, push lever down/up to the following positions:
: Mist (for a single wipe)
: Off
: Intermittent
: Low speed
: High speed
2 Intermittent interval
To change interval speed, turn dial.
3 Washer
To wash the windshield, pull the wiper control lever toward you.
3
