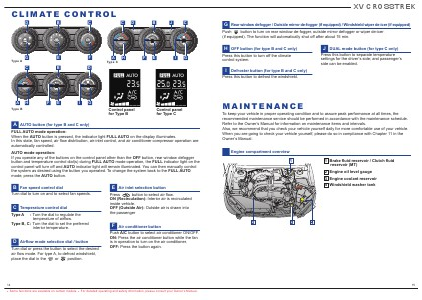

C L I M AT E C O N T RO L
D
C
G
E
F
C
Type A
B
B
D
A
H
F
E
I
D
H
B
F
J
E
C
I
G
G
Type B
A
A
Type C
C
Control panel
for Type B
Control panel
for Type C
AUTO button (for type B and C only)
FULL AUTO mode operation:
When the AUTO button is pressed, the indicator light FULL AUTO on the display illuminates.
In this state, fan speed, air flow distribution, air-inlet control, and air conditioner compressor operation are
automatically controlled.
AUTO mode operation:
If you operate any of the buttons on the control panel other than the OFF button, rear window defogger
button and temperature control dial(s) during FULL AUTO mode operation, the FULL indicator light on the
control panel will turn off and AUTO indicator light will remain illuminated. You can then manually control
the system as desired using the button you operated. To change the system back to the FULL AUTO
mode, press the AUTO button.
B
Fan speed control dial
Turn dial to turn on and to select fan speeds.
C
Temperature control dial
Type A
: Turn the dial to regulate the
temperature of airflow.
Type B, C : Turn the dial to set the preferred
interior temperature.
D
Airflow mode selection dial / button
Turn dial or press the button to select the desired
air flow mode. For type A, to defrost windshield,
place the dial in the
or
position.
E
Air inlet selection button
Press
button to select air flow.
ON (Recirculation): Interior air is recirculated
inside vehicle.
OFF (Outside Air): Outside air is drawn into
the passenger
F
Air conditioner button
Push A/C button to select air conditioner ON/OFF.
ON: Press the air conditioner button while the fan
is in operation to turn on the air conditioner.
OFF: Press the button again.
14
Some functions are available on certain models. For detailed operating and safety information, please consult your Owner’s Manual.
