Hybrid System Component Locations & Descriptions
Component
Location
Description
12
① Volt Auxiliary
Battery
Engine Compartment
A lead-acid battery that supplies power to the low voltage
devices.
12
② Volt Engine
Restart Battery
Engine Compartment
A lead-acid battery that supplies power to the integrated
starter generator.
High Voltage
③
Battery
Cargo Area, Mounted to
Cross Member behind
Rear Seat
100.8 Volt Nickel Metal Hydride (NiMH) battery consisting of 21
low voltage (4.8 Volt) modules connected in series.
④ Power Cables
Undercarriage,
Engine
Compartment and
Cargo Area
Orange colored power cables carry the 3-phase Alternating
Current (AC) between the drive motor inverter, electric oil
pump inverter, drive motor, and electric oil pump.
This cable also carries 12 Volt DC between the DC/DC
converter and 12 Volt auxiliary battery.

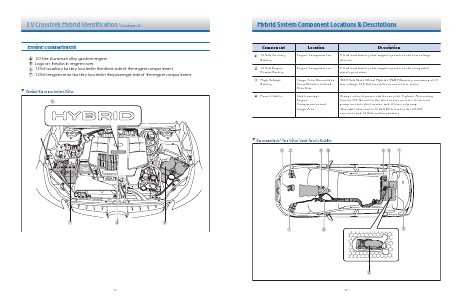

Components (Top View) and Power Cables
-6-
