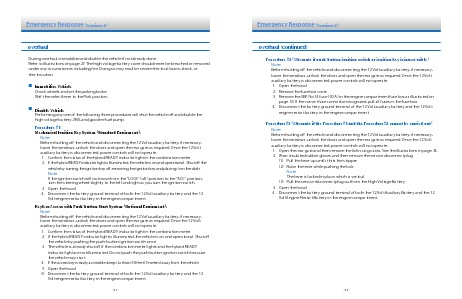

Emergency Response (Continued)
Overhaul (Continued)
Procedure #2 (Alternate if push-button ignition switch or ignition key is inaccessible)
Note:
Before shutting off the vehicle and disconnecting the 12 Volt auxiliary battery, if necessary,
lower the windows, unlock the doors and open the rear gate as required. Once the 12 Volt
auxiliary battery is disconnected, power controls will not operate.
1. Open the hood.
2. Remove the fuse box cover.
3. Remove the SBF No.14 fuse (30 A) in the engine compartment fuse box as illustrated on
page 33. If the correct fuse cannot be recognized, pull all fuses in the fuse box.
4. Disconnect the battery ground terminal of the 12 Volt auxiliary battery and the 12 Volt
engine restart battery in the engine compartment.
Procedure#3 (Alternate if the Procedure#1 and the Procedure#2 cannot be carried out)
Note:
Before shutting off the vehicle and disconnecting the 12 Volt auxiliary battery, if necessary,
lower the windows, unlock the doors and open the rear gate as required. Once the 12 Volt
auxiliary battery is disconnected, power controls will not operate.
1. Open the rear gate and then remove the lid in cargo area. See the illustrations in page 34.
2. Wear insulated rubber gloves and then remove the service disconnect plug.
(1) Pull the lever up until it hits the stopper.
(2) Raise the lever while pushing the lock.
Note:
The lever is locked in place, which is vertical.
(3) Pull the service disconnect plug out from the High Voltage Battery.
3. Open the hood.
4. Disconnect the battery ground terminal of both the 12 Volt Auxiliary Battery and the 12
Volt Engine Restart Battery in the engine compartment.
-44-
