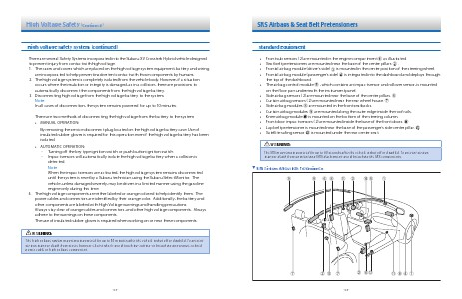

SRS Airbags & Seat Belt Pretensioners
Standard Equipment
•
•
•
•
•
•
•
•
•
•
•
•
•
Front sub sensors (2) are mounted in the engine compartment ① as illustrated.
Seat belt pretensioners are mounted near the base of the center pillars ② .
Frontal airbag module (driver’s side) ③ is mounted in the center position of the steering wheel.
Frontal airbag module (passenger’s side) ④ is integrated into the dashboard and deploys through
the top of the dashboard.
The airbag control module ⑤ , which contains an impact sensor and rollover sensor, is mounted
on the floor pan underneath the instrument panel.
Side airbag senso
