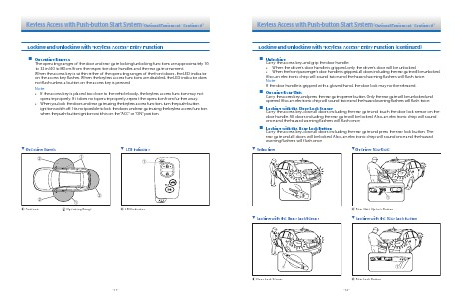

Keyless Access with Push-button Start System (Optional Equipment - Continued)
Locking and Unlocking with “Keyless Access” Entry Function
Operating Ranges
The operating ranges of the door and rear gate locking/unlocking functions are approximately 16
to 32 in (40 to 80 cm) from the respective door handles and the rear gate ornament.
When the access key is within either of the operating ranges of the front doors, the LED indicator
on the access key flashes. When the keyless access functions are disabled, the LED indicator does
not flash unless a button on the access key is pressed.
Note:
• If the access key is placed too close to the vehicle body, the keyless access function may not
operate properly. If it does not operate properly, repeat the operation from further away.
• When you lock the doors and rear gate using the keyless access function, turn the push-button
ignition switch off. It is not possible to lock the doors and rear gate using the keyless access function
when the push-button ignition switch is on the “ACC” or “ON” position.
Operating Ranges
① Antenna
LED Indicator
② Operating Range
① LED Indicator
-11-
