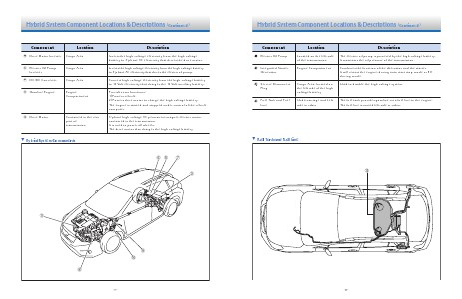

Hybrid System Component Locations & Descriptions (Continued)
Component
Location
Description
⑩ Electric Oil Pump
Located on the left side
of the transmission
The electric oil pump is powered by the high voltage battery.
It maintains the oil pressure of the transmission.
⑪ Integrated Starter
Generator
Engine Compartment
Combines the function of the alternator and the starter.
It will restart the engine, during auto start stop mode or EV
driving mode.
⑫ Service Disconnect
Plug
Cargo Area, located on
the left side of the high
voltage battery
Used to disable the high voltage system.
⑬ Fuel Tank and Fuel
Line
Undercarriage and Left
side in cabin
The fuel tank provides gasoline via a fuel line to the engine.
The fuel line is routed left side in cabin.
Fuel Tank and Fuel Line
-8-
