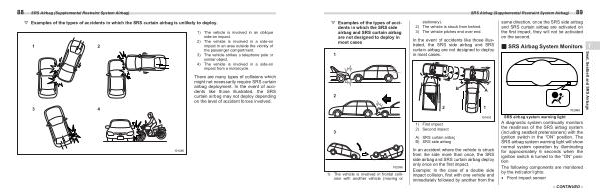

SRS Airbag( S ▽ Examples of the types of accidents in which the SRS side airbag and SRS curtain airbag are not designed to deploy in most cases
1
stationary). |
2) |
The vehicle is struck from behind. |
3) |
The vehicle pitches end over end. |
In the event of accidents like those illustrated, the SRS side airbag and SRS curtain airbag are not designed to deploy in most cases. 2
B A 2
1
101410
3
102056
1) The vehicle is involved in frontal collision with another vehicle( moving or
1) |
First impact |
2) |
Second impact |
A) |
SRS curtain airbag |
B) |
SRS side airbag |
In an accident where the vehicle is struck from the side more than once, the SRS side airbag and SRS curtain airbag deploy only once on the first impact.
Example: In the case of a double side impact collision, first with one vehicle and immediately followed by another from the
