40

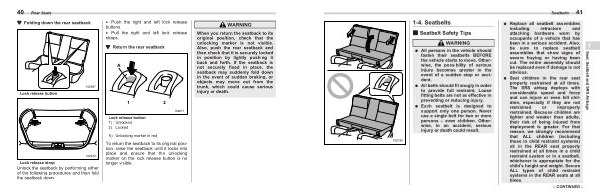

Rear Seats ▼ Folding down the rear seatback
� Push the right and left lock release buttons .
� Pull the right and left lock release straps .
▼ Return the rear seatback
A
102667
Lock release button 1 2
102671
Lock release button |
1 ) |
Unlocked |
2 ) |
Locked |
102670
Lock release strap
Unlock the seatback by performing either of the following procedures and then fold the seatback down .
A ) Unlocking marker in red
To return the seatback to its original position , raise the seatback until it locks into place and ensure that the unlocking marker on the lock release button is no longer visible .
