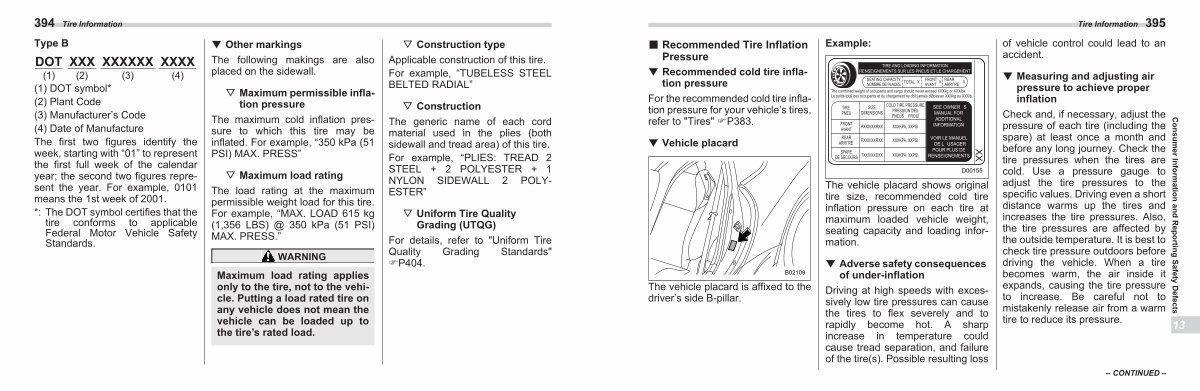

394 Type B
Tire Information DOT XXX XXXXXX XXXX
( 1)( 2)( 3)( 4)( 1) DOT symbol *( 2) Plant Code( 3) Manufacturer’ s Code( 4) Date of Manufacture
The first two figures identify the week, starting with“ 01” to represent the first full week of the calendar year; the second two figures represent the year. For example, 0101 means the 1st week of 2001.
*: The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.
▼ Other markings
The following makings are also placed on the sidewall. ▽ Maximum permissible inflation pressure
The maximum cold inflation pressure to which this tire may be inflated. For example,“ 350 kPa( 51 PSI) MAX. PRESS”
▽ Maximum load rating
The load rating at the maximum permissible weight load for this tire. For example,“ MAX. LOAD 615 kg( 1,356 LBS) @ 350 kPa( 51 PSI) MAX. PRESS.”
WARNING
Maximum load rating applies only to the tire, not to the vehicle. Putting a load rated tire on any vehicle does not mean the vehicle can be loaded up to the tire’ s rated load.
