370 Fuses It is unnecessary to periodically check the battery fluid level or periodically refill with distilled water.
NOTE
To avoid battery drain, do not use electric power( e. g., lights, wipers, climate control, seat heaters, etc.) for longer than necessary when the engine is off. If using the radio, room lights or other electrical equipment with the engine off, even in the ignition switch is in the“ ACC” position, the battery will drain.

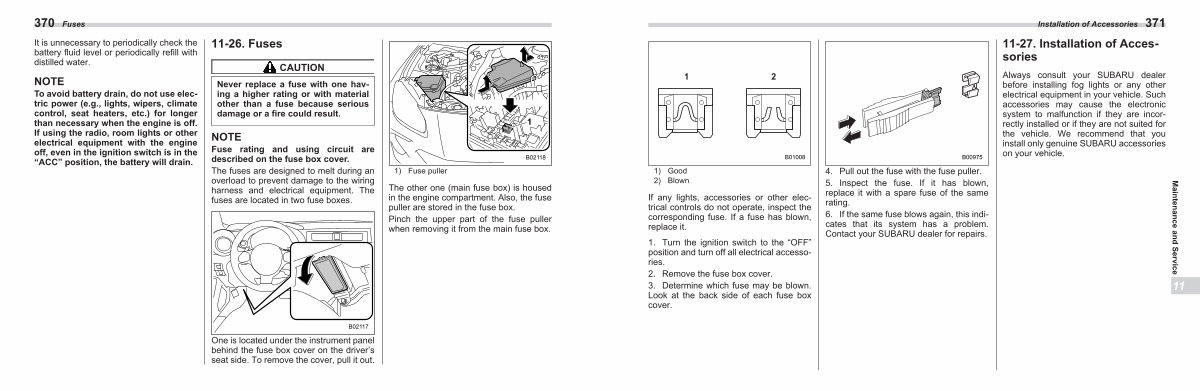

11-26. Fuses CAUTION Never replace a fuse with one having a higher rating or with material other than a fuse because serious damage or a fire could result.
NOTE
Fuse rating and using circuit are described on the fuse box cover.
The fuses are designed to melt during an overload to prevent damage to the wiring harness and electrical equipment. The fuses are located in two fuse boxes.
T in p
P w
B02117
One is located under the instrument panel behind the fuse box cover on the driver’ s seat side. To remove the cover, pull it out.
