BRZ _ U. book 347 ページ 2024 年 6 月 14 日 金曜日 午前 9 時 14 分
1
CAUTION

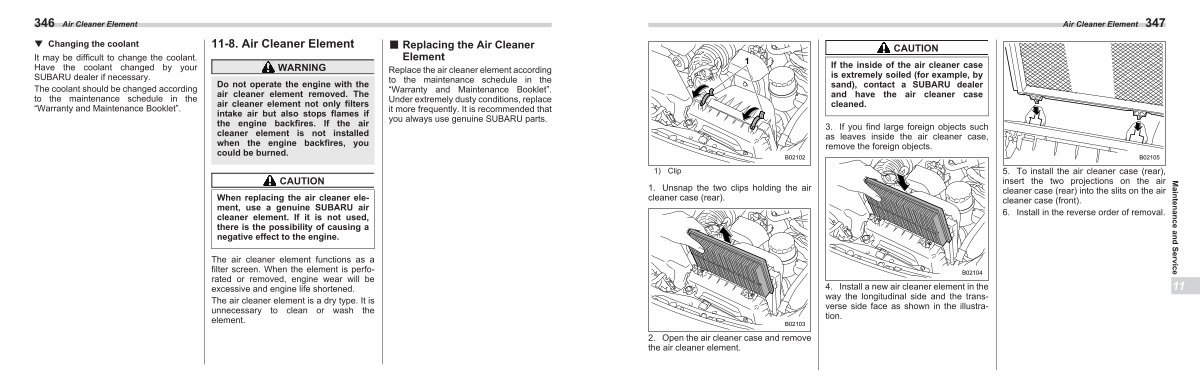

If the inside of the air cleaner case is extremely soiled( for example, by sand), contact a SUBARU dealer and have the air cleaner case cleaned. 1) Clip
B02102
3. If you find large foreign objects such as leaves inside the air cleaner case, remove the foreign objects.
1. Unsnap the two clips holding the air cleaner case( rear).
B02103
2. Open the air cleaner case and remove the air cleaner element.
B02104
4. Install a new air cleaner element in the way the longitudinal side and the transverse side face as shown in the illustration.
