Check the fuse and replace it if necessary. Refer to " Fuses " �P370. If the fuse is not blown, have the cooling system checked by your SUBARU dealer. If the frequent addition of coolant is necessary between vehicle service visits, it is recommended that you have your vehicle inspected by an authorized SUBARU dealer to check for leaks, damage, or looseness. ■ Engine Coolant

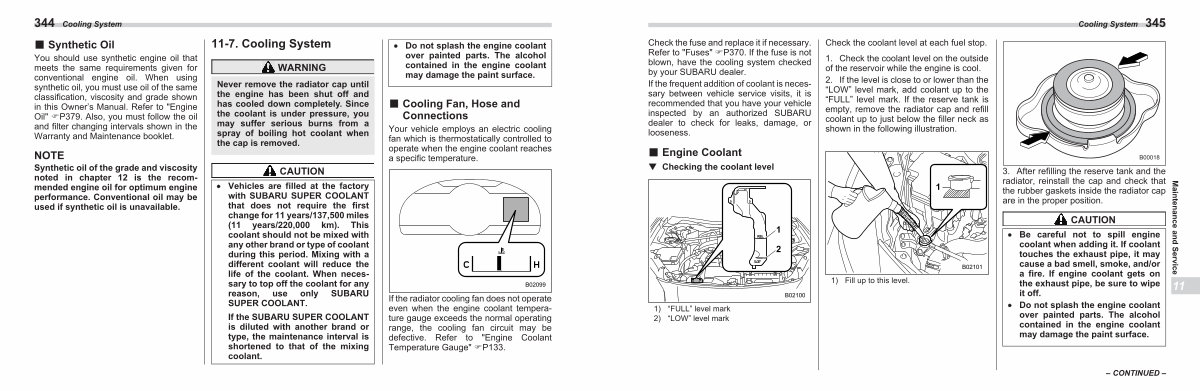

▼ Checking the coolant level
Check the coolant level at each fuel stop.
1. Check the coolant level on the outside of the reservoir while the engine is cool.
2. If the level is close to or lower than the“ LOW” level mark, add coolant up to the“ FULL” level mark. If the reserve tank is empty, remove the radiator cap and refill coolant up to just below the filler neck as shown in the following illustration. 1
1 2
B02101
1) Fill up to this level.
B02100
1) |
“ FULL” level mark |
2) |
“ LOW” level mark |
