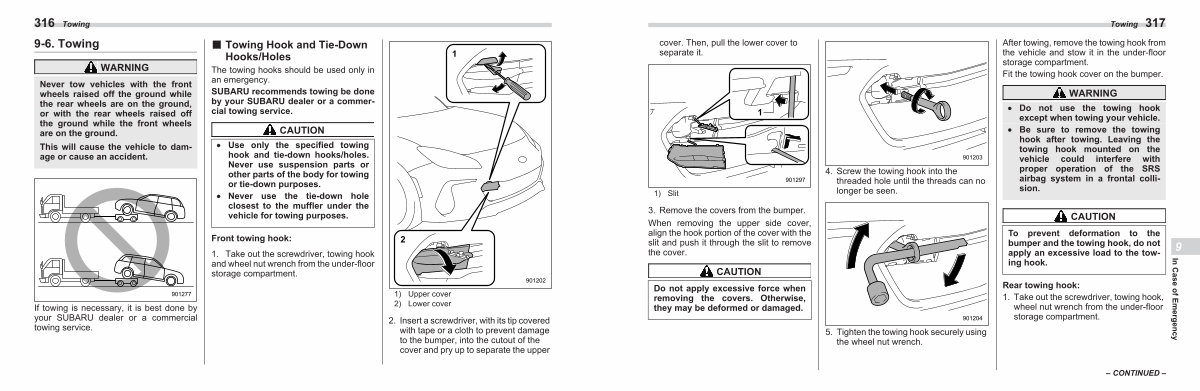

cover. Then, pull the lower cover to separate it.
1 1) Slit
901297
901203
4. Screw the towing hook into the threaded hole until the threads can no longer be seen.
3. Remove the covers from the bumper.
When removing the upper side cover, align the hook portion of the cover with the slit and push it through the slit to remove the cover.
CAUTION
Do not apply excessive force when removing the covers. Otherwise, they may be deformed or damaged.
901204
5. Tighten the towing hook securely using the wheel nut wrench.
