BRZ _ U. book 309 ページ 2024 年 6 月 14 日 金曜日 午前 9 時 14 分
0
20
30 psi
40

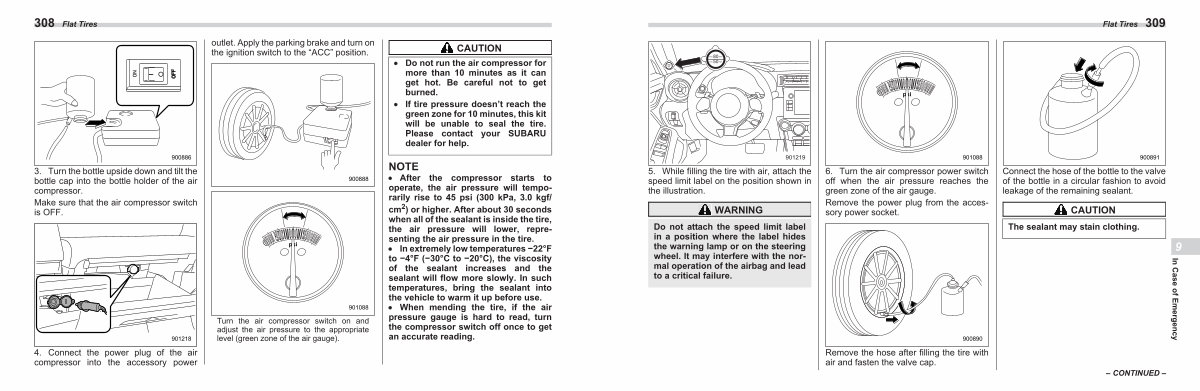

5. While filling the tire with air, attach the speed limit label on the position shown in the illustration.
WARNING
901219
Do not attach the speed limit label in a position where the label hides the warning lamp or on the steering wheel. It may interfere with the normal operation of the airbag and lead to a critical failure.
901088
6. Turn the air compressor power switch off when the air pressure reaches the green zone of the air gauge.
Remove the power plug from the accessory power socket.
900890
Remove the hose after filling the tire with air and fasten the valve cap.
