BRZ _ U. book 279 ページ 2024 年 6 月 14 日 金曜日 午前 9 時 14 分
Reverse Automat by SUBARU will not disclose or provide the acquired data to any other third party except under the following conditions.
� The vehicle owner has given his / her consent. � The disclosure / provision is based on a court order or other legally enforceable request. � Data that has been modified so that the user and vehicle cannot be identified is provided to a research institution for statistical processing or similar purposes.

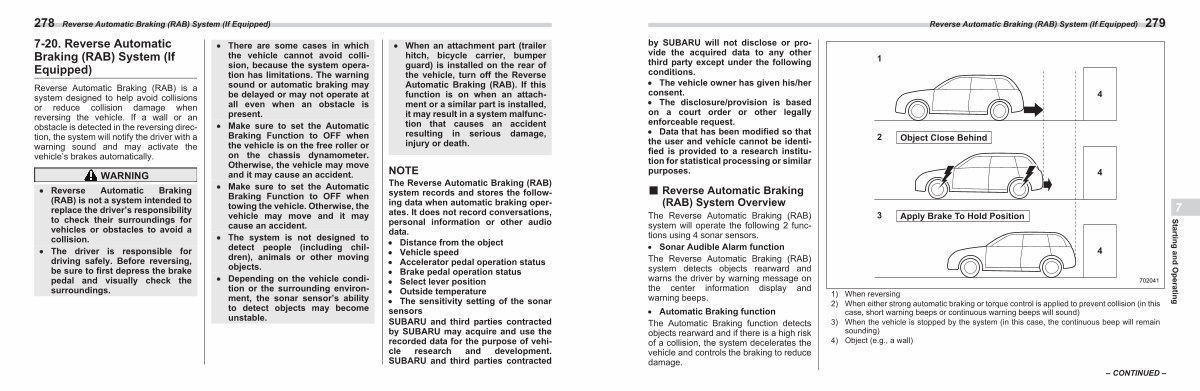

1 2 Object Close Behind ■ Reverse Automatic Braking( RAB) System Overview
The Reverse Automatic Braking( RAB) system will operate the following 2 functions using 4 sonar sensors.
� Sonar Audible Alarm function
The Reverse Automatic Braking( RAB) system detects objects rearward and warns the driver by warning message on the center information display and warning beeps.
� Automatic Braking function
The Automatic Braking function detects objects rearward and if there is a high risk of a collision, the system decelerates the vehicle and controls the braking to reduce damage.
3 Apply Brake To Hold P
1) |
When reversing |
2) |
When either strong automatic braking or to |
case, short warning beeps or continuous w |
3) |
When the vehicle is stopped by the system |
sounding) |
4) |
Object( e. g., a wall) |
