switch before shifting to the“ R” range. Then, the warning message will be displayed. 4
5
3 2
1
6

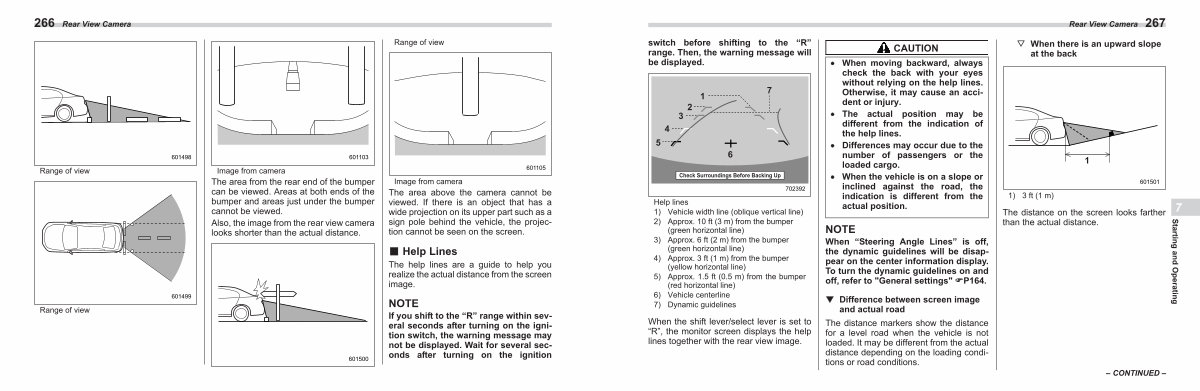

Check Surroundings Before Backing Up 702392
Help lines 1) Vehicle width line( oblique vertical line)
2) Approx. 10 ft( 3 m) from the bumper �( green horizontal line)
3) Approx. 6 ft( 2 m) from the bumper �( green horizontal line)
4) Approx. 3 ft( 1 m) from the bumper �( yellow horizontal line)
5) Approx. 1.5 ft( 0.5 m) from the bumper( red horizontal line)
6) Vehicle centerline 7) Dynamic guidelines
When the shift lever / select lever is set to“ R”, the monitor screen displays the help lines together with the rear view image.
7
CAUTION
� When moving backward, always check the back with your eyes without relying on the help lines. Otherwise, it may cause an accident or injury.
� The actual position may be different from the indication of the help lines.
� Differences may occur due to the number of passengers or the loaded cargo.
� When the vehicle is on a slope or inclined against the road, the indication is different from the actual position. NOTE
When“ Steering Angle Lines” is off, the dynamic guidelines will be disappear on the center information display. To turn the dynamic guidelines on and off, refer to " General settings " �P164.
▼ Difference between screen image and actual road
The distance markers show the distance for a level road when the vehicle is not loaded. It may be different from the actual distance depending on the loading conditions or road conditions.
