242
Automatic Transmission toward “ - ” or “+” or operating the “ - ” or “+” shift paddle . 4
1 2
3
3
4
The gear changes once each time the select lever or a shift paddle is operated . The selected gear , from “ M1 ” to “ M6 ”, will be displayed on the combination meter .
When in manual mode , the gear will not change unless the select lever or a shift paddle is operated , except in the following situations .
� When the vehicle speed drops ( downshift only )
� When the engine oil temperature is high and the engine speed approaches close to the red zone
If an upshift is attempted while the vehicle speed is low , the gear will not be changed .
CAUTION
Do not place or hang anything on the shift paddles . Doing so may result in accidental gear shifting . th s � s O n s th ▼
W a te a d th re p

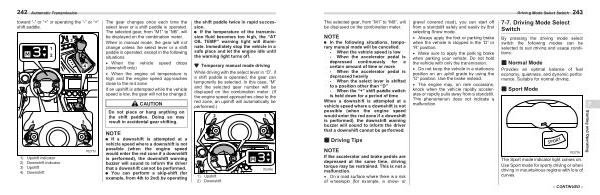

1 ) |
Upshift indicator |
2 ) |
Downshift indicator |
3 ) |
Upshift |
4 ) |
Downshift |
702773
NOTE
� If a downshift is attempted at a vehicle speed where a downshift is not possible ( when the engine speed would enter the red zone if a downshift is performed ), the downshift warning buzzer will sound to inform the driver that a downshift cannot be performed . � You can perform a skip-shift ( for example , from 4th to 2nd ) by operating
