208

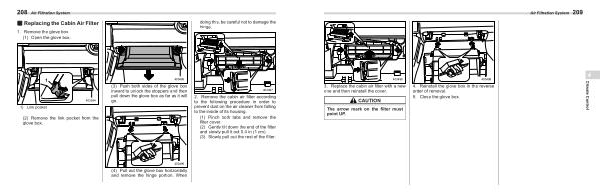

Air Filtration System ■ Replacing the Cabin Air Filter
1. Remove the glove box.( 1) Open the glove box. 1
1) Link pocket
403594
( 2) Remove the link pocket from the glove box.
403495
( 3) Push both sides of the glove box inward to unlock the stoppers and then pull down the glove box as far as it will go.
2 to p to
403496
( 4) Pull out the glove box horizontally and remove the hinge portion. When
