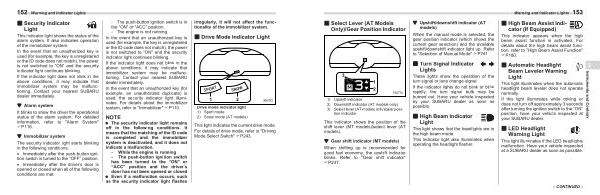

■ Select Lever( AT Models Only)/ Gear Position Indicator
▼ Upshift / downshift indicator( AT models)
When the manual mode is selected, the gear position indicator( which shows the current gear selection) and the available upshift / downshift indicator light up. Refer to " Selection of Manual Mode " �P241 3 1 2
702774
1) |
Upshift indicator |
2) |
Downshift indicator( AT models only) |
3) |
Select lever( AT models only)/ gear position |
indicator |
This indicator shows the position of the shift lever( MT models)/ select lever( AT models).
▼ Gear shift indicator( MT models)
When shifting up is recommended for good fuel economy, the upshift indicator blinks. Refer to " Gear shift indicator " �P237.
■ Turn Signal Indicator Lights
These lights show the operation of the turn signal or lane change signal.
If the indicator lights do not blink or blink rapidly, the turn signal bulb may be burned out. Have your vehicle inspected by your SUBARU dealer as soon as possible.
■ High Beam Indicator Light
This light shows that the headlights are in the high beam mode.
This indicator light also illuminates when operating the headlight flasher.
