SRS Airbag ( Supplemental Restraint System Airbag )
� To deploy in the event of an accident involving a moderate to severe side impact collision
� To function on a one-time-only basis .
The SRS side airbag and SRS curtain airbag are not designed to deploy in the following cases :
� In most lesser side impact
� In most frontal or most rear impacts ( because the SRS side airbag and SRS curtain airbag deployment would not protect the occupant in those situations )
The SRS curtain airbags are also designed to deploy when the vehicle is in an extremely inclined state such as during a rollover . They are not designed to deploy in most lesser inclined state .
SRS side airbag and SRS curtain airbag deployment depend on the level of force experienced in the passenger compartment during a side impact collision . That level differs from one type of collision to another , and it may have no bearing on the visible damage done to the vehicle itself .
1

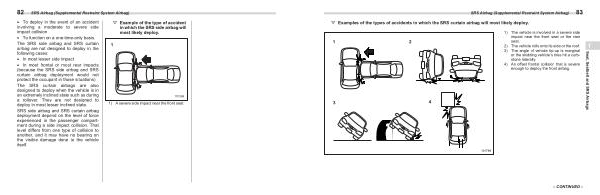

▽ Example of the type of accident in which the SRS side airbag will most likely deploy .
101369
1 ) A severe side impact near the front seat .
