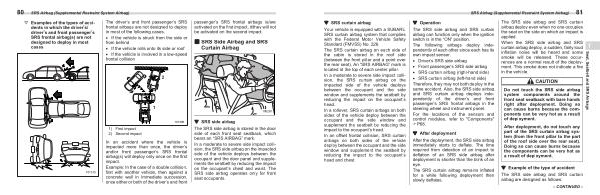

SRS Airbag ( Supplemental Restraint System Airbag ) ▽ Examples of the types of accidents in which the driver ’ s / driver ’ s and front passenger ’ s SRS frontal airbag ( s ) are not designed to deploy in most cases
The driver ’ s and front passenger ’ s SRS frontal airbags are not designed to deploy in most of the following cases .
� If the vehicle is struck from the side or from behind
� If the vehicle rolls onto its side or roof
� If the vehicle is involved in a low-speed frontal collision p a b ■ 2
1
101315
1 ) |
First impact |
2 ) |
Second impact |
101395
In an accident where the vehicle is impacted more than once , the driver ’ s and / or front passenger ’ s SRS frontal airbag ( s ) will deploy only once on the first impact .
Example : In the case of a double collision , first with another vehicle , then against a concrete wall in immediate succession , once either or both of the driver ’ s and front
▼
