78
SRS Airbag ( Supplemental Restraint System Airbag )

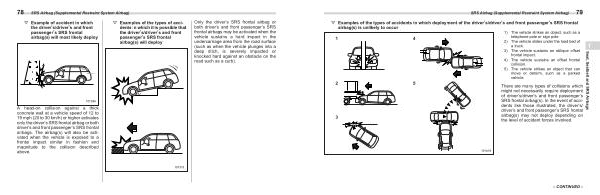

▽ Example of accident in which the driver ’ s / driver ’ s and front passenger ’ s SRS frontal airbag ( s ) will most likely deploy
▽ Examples of the types of accidents in which it is possible that the driver ’ s / driver ’ s and front passenger ’ s SRS frontal airbag ( s ) will deploy
O b fr v u ( s d k ro
101394
A head-on collision against a thick concrete wall at a vehicle speed of 12 to 19 mph ( 20 to 30 km / h ) or higher activates only the driver ’ s SRS frontal airbag or both driver ’ s and front passenger ’ s SRS frontal airbags . The airbag ( s ) will also be activated when the vehicle is exposed to a frontal impact similar in fashion and magnitude to the collision described above .
101313
