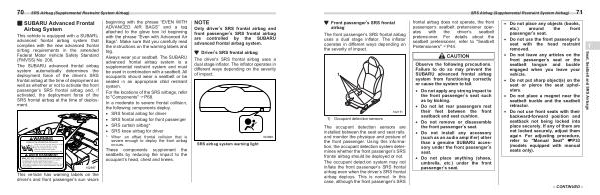

SRS Airbag ( Supplemental Restraint System Airbag ) ■ SUBARU Advanced Frontal Airbag System
This vehicle is equipped with a SUBARU advanced frontal airbag system that complies with the new advanced frontal airbag requirements in the amended Federal Motor Vehicle Safety Standard ( FMVSS ) No . 208 .
The SUBARU advanced frontal airbag system automatically determines the deployment force of the driver ’ s SRS frontal airbag at the time of deployment as well as whether or not to activate the front passenger ’ s SRS frontal airbag and , if activated , the deployment force of the SRS frontal airbag at the time of deployment . 102697
This vehicle has warning labels on the driver ’ s and front passenger ’ s sun visors beginning with the phrase “ EVEN WITH ADVANCED AIR BAGS ” and a tag attached to the glove box lid beginning with the phrase “ Even with Advanced Air Bags ”. Make sure that you carefully read the instructions on the warning labels and tag .
Always wear your seatbelt . The SUBARU advanced frontal airbag system is a supplemental restraint system and must be used in combination with a seatbelt . All occupants should wear a seatbelt or be seated in an appropriate child restraint system .
For the locations of the SRS airbags , refer to " Components " �P68 .
In a moderate to severe frontal collision , the following components deploy .
� SRS frontal airbag for driver � SRS frontal airbag for front passenger � SRS curtain airbag * � SRS knee airbag for driver *: When an offset frontal collision that is severe enough to deploy the front airbag occurs .
These components supplement the seatbelts by reducing the impact to the occupant ’ s head , chest and knees .
